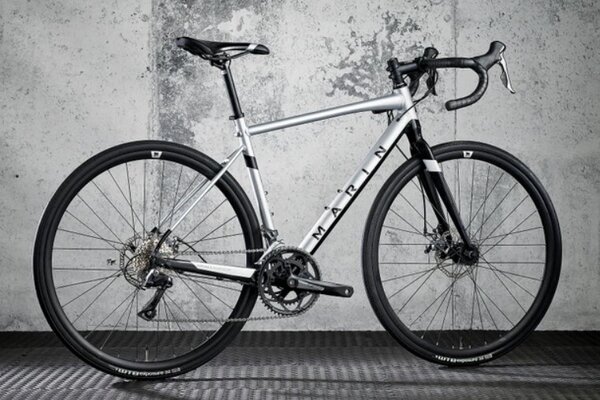

Marin Gestalt

Marin Gestalt
  • Color: Black and Blue
  • Color: Silver on Black
This item is currently not available.

Details

The Marin Gestalt is a great choice: very speedy and well made, versatile enough for day to day commuting and even a loaded tour here and there.

The Gestalts are speedy, aluminum frame all-road bikes with Tiagra groupsets and disc brakes.

They're designed primarily for endurance riding so are durable and have all the mounts you need for gear, as well as a slightly more upright stance for comfort on day-long rides on pavement and/or gravel.

Unlike some of the more rugged gravel bikes out there, the Gestalts skew towards more classic road geometry and spec, so they're light and quick daily commuter bikes too.

  • FRAME

    Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts

  • FORK

    6061 Aluminum, Straight-Blade, Post-Mount Disc

  • RIMS

    Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific, Tubeless Compatible

  • HUB, REAR

    Forged Aluminum Alloy, 32H

  • HUB, FRONT

    Forged Aluminum Alloy, 32H

  • SPOKE, NIPPLES

    14g Black Stainless Steel

  • TIRES

    WTB, Exposure Comp, 700Cx32mm, Wire Bead

  • DERAILLEUR, REAR

    Shimano Claris 8-Speed

  • DERAILLEUR, FRONT

    Shimano Claris

  • SHIFT LEVER

    Shimano Claris 2x8-Speed

  • CRANKSET

    FSA Tempo Compact, 50/34T

  • BOTTOM BRACKET

    Sealed Bearing Square Taper

  • CHAIN

    KMC X8

  • CASSETTE

    SunRace 8-Speed, 11-34T

  • BRAKE, FRONT

    Promax Render R Road Mechanical Disc

  • BRAKE, REAR

    Promax Render R Road Mechanical Disc

  • BRAKE LEVERS

    Shimano w/ Integrated Shifters

  • HANDLEBAR

    Marin Butted Alloy, Compact 12º Flared Drop

  • STEM

    Marin 3D Forged Alloy

  • GRIPS

    Marin Perforated Tape

  • HEADSET

    FSA No.8B

  • SEATPOST

    Marin Alloy, 27.2mm

  • SADDLE

    Marin Beyond Road Concept

  • PEDALS

    Commute Platform

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY

Gestalt geometry diagram
505254565860
ASTACK 542.5 560.4 574.7 593.7 612.7 633.8
BREACH 369.6 374.3 374.8 389.1 397.7 406.2
CHEADTUBE ANGLE 71° 72° 72° 72° 72° 72.5°
DHEADTUBE LENGTH 120 135 150 170 190 210
ESEATTUBE ANGLE 74.5° 74° 73.5° 73.5° 73° 73°
FSEATTUBE LENGTH 470 490 510 530 550 570
GTOPTUBE EFFECTIVE 520 535 545 565 585 600
HBB HEIGHT 271 271 271 271 271 271
IBB DROP 72 72 72 72 72 72
JCHAINSTAY 415 415 415 415 415 415
KWHEELBASE 993.1 994.3 999.4 1019.9 1034.6 1044.5
LSTANDOVER HEIGHT 713 732 751 774 793 813
MFORK OFFSET 50 50 50 50 50 50
SEATPOST DIAMETER 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 400 400 420 420 440 440
STEM LENGTH 70 70 90 90 110 110
CRANK LENGTH 170 170 175 175 175 175

All lengths in millimeters
